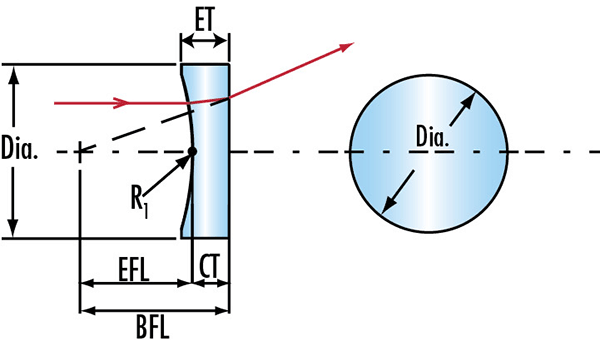

Plano concave cylindrical lens

A plano-concave cylindrical lens is used to expand light in on-axis. A negative cylindrical lens is able to diverge collimated input light away from a line. Plano-concave cylindrical lenses are used for one-dimensional compression of images, anamorphic beam shaping, and laser line generation.

A cylindrical lens is a lens with different radii on the X and Y axes, so the lens is cylindrical or semi-cylindrical in shape and has image magnification on only one optical axis. Cylindrical lenses are used to correct astigmatism in the eye and for rangefinders, which produce astigmatism and stretch a point of light into a line. Ideal for demanding laser processing and medical applications, cylindrical lenses are also widely used to collect and focus light for many imaging applications.

China Star Optics can provide different kinds of optical cylindrical lens like Plano convex, Plano concave, Bi convex, Bi concave cylindrical lens. If you want to know more information about a prism, please contact us.

Specifications

Material:	N-BK7, Fused Silica, zinc selenide, calcium fluoride and silicon etc.
Shape:	plano, concave and convex structures, and cemented
Diameter:	1-500 mm +0/-0.2 mm
Surface Quality:	40/20 Scratch and Dig
Flatness:	N＜1/4L@632.8 nm
Lens Centration:	3 arc sec
Coating:	Uncoated, AR Coating, BBAR Coating etc.
