Plano Convex Cylindrical Lens
Key words:
Cylindrical Lens
Classification:
Cylindrical Lens
WhatsApp：

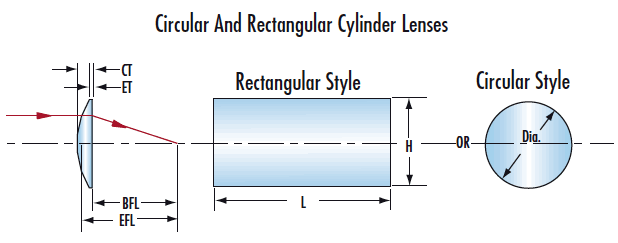

Plano convex cylindrical lens
A plano-convex cylindrical lens is used to condense light in one axis. A positive plano cylindrical lens is able to create a line image from a point of light, to change the aspect ratio of an image or to focus collimated input light to a line. Plano- convex cylindrical lenses are typically used for illumination of slit and line detector arrays, laser projection, laser line focussing and anamorphic beam shaping.
A cylindrical lens is a lens with different radii on the X and Y axes, so the lens is cylindrical or semi-cylindrical in shape and has image magnification on only one optical axis. Cylindrical lenses are used to correct astigmatism in the eye and for rangefinders, which produce astigmatism and stretch a point of light into a line. Ideal for demanding laser processing and medical applications, cylindrical lenses are also widely used to collect and focus light for many imaging applications.
China Star Optics can provide different kinds of optical cylindrical lens like Plano convex, Plano concave, Bi convex, Bi concave cylindrical lens. If you want to know more information about a prism, please contact us.
Specifications
| Material: | N-BK7, Fused Silica, zinc selenide, calcium fluoride and silicon etc. |
| Shape: | plano, concave and convex structures, and cemented |
| Diameter: | 1-500 mm +0/-0.2 mm |
| Surface Quality: | 40/20 Scratch and Dig |
| Flatness: | N＜1/4L@632.8 nm |
| Lens Centration: | 3 arc sec |
| Coating: | Uncoated, AR Coating, BBAR Coating etc. |
